PRODUK PANAS
Centrifuge Kapasitas Gedhe kanthi Biosafety Lampu UV kanggo Laboratorium lan Medis
| aplikasi: | Laboratorium Industri, Rumah Sakit, Klinik Hewan, Lab Pangan, Universitas & Perguruan Tinggi, Laboratorium Farmasi, Laboratorium Kultur Sel |
| Maks. Kacepetan | 6000rpm |
| Maks.RCF | 4752xg |
| Max.Capacity | 4 * 1000ml |
| Rotor sing cocog | Rotor sudut tetep, ember ayunan |
| tampilan | LCD |
| Panggil Model: | DL-5M |
| Certification: | CE, ISO13485, ISO9001, SFDA |
| Warranty | Garansi 1 taun kanggo kabeh mesin, garansi 3 taun kanggo kompresor lan garansi 5 taun kanggo motor. Suku cadang lan pengiriman gratis sajrone garansi. |
- Description
- Video
- Specifications Technical
- Rotor lan Aksesoris
- Advantage competitive

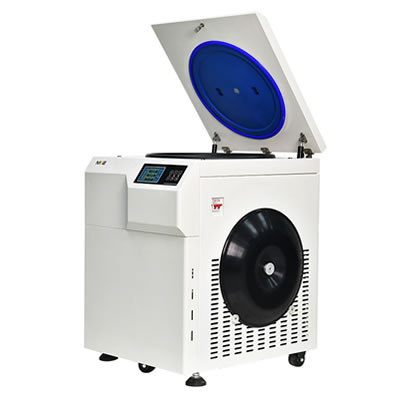

Floor standing refrigerated centrifuge DL-5M which can process the large capacity fixed rotor such as4*1000ml and can also process the swing out rotor ,widely used in the the fields of blood stations, pharmaceutical factories, biochemistry, biological products, etc. It is the ideal instrument for blood separation, protein precipitation and cell collection and conforms to CE security certification, ISO9001 and 13485 quality certification.
desain
● Metal omah, tutup logam, lan stainless steel centrifuge kamar sing autoclave-bisa lan deterjen tahan lan cairan disinfeksi.
● Jendhela pengamatan ing tutup kanggo kalibrasi kacepetan lan pangukuran swara.
● kontrol mikroprosesor karo konversi frekuensi AC motor drive

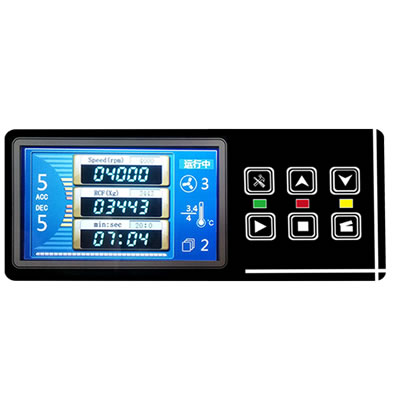

● LCD Nampilake paramèter Speed, Timer, RCF, Rotor, Program(Memori), informasi Akselerasi & Kurangé populasi lan informasi kode kesalahan.
● Dobel lapisan sealing ring digawe kanggo tutup centrifuge lan instrument kanggo njaga sealing apik dawa.
● Bio-safety: sirah puteran gas-nyenyet sing bisa sterilized ing suhu dhuwur, growong centrifugual karo fungsi sterilization ultraviolet, ngetik negara sterilization sawise nguripake mesin.
● Desain multi-lapisan kanggo adaptor, bisa digunakake kanggo tabung 100mm lan 75mm, kanthi otomatis njupuk tutup, nambah efisiensi.
● Bio-safety: sirah puteran gas-nyenyet sing bisa sterilized ing suhu dhuwur, growong centrifugal karo ultraviolet sterilization fungsi, ketik negara sterilization sawise nguripake.
Pangguna grapyak
● Programmable lan storable, nyimpen nganti 30 program lan menehi akses pangguna langsung karo siji keystroke nyimpen. Parameter sing disimpen: kombinasi tetep ing memori sanajan centrifugation wis dipateni.
● Nyedhiyakake 10 tingkat akselerasi lan 10 braking ramp, kanggo èfèktif ngindhari sedimentasi sekunder, kanthi efek sentrifugasi sing luwih apik.
● Otomatis tutup-kunci lan nyekeli sak rotor roto
● rotors gampang exchangeable, konektor rotor khusus kang nggampangake kanggo mbukak lan mbongkar rotor.
● Ngatasi masalah otomatis kanthi indikasi kode kesalahan lan weker ing layar.
● "Mute" teknologi paten. Tingkat gangguan luwih murah tinimbang 55 desibel kanthi kecepatan rotasi paling dhuwur.
● Konversi rpm/rcf otomatis
● Sistem identifikasi rotor otomatis, identifikasi rotor kode ngalangi rotor saka liwat kacepetan.
● Sistem pendinginan bebas CFC, Fitur Pre-cooling, Kontrol suhu sing tepat nganti - 20°C.
Keslametan
● Diprodhuksi miturut peraturan safety internasional (contone IEC 61010)
● Safety Listrik tutup interlock, lawang ora bisa mbukak nalika rotor mlaku lan mesin ora mbukak nalika tutup mbukak lan kode kesalahan katon.
● Rilis tutup-kunci darurat nalika gagal daya (banget migunani ing gangguan daya sing ora dikarepke).
● Engsel gas kanggo pangayoman gulung tutup.
● pangayoman Safety digawe kanggo kacepetan liwat, liwat panas(motor, kamar), boten seimbang kalebet etc kanggo njamin safety mesin wong.
| Range kacepetan (rpm) | 0-6000rpm luwes | Jangkoan wektu | 1-99 menit luwes |
| Kapasitas Maks (ml) | 4 * 1000ml | Akurasi kacepetan | ± 10r / menit |
| Range RCF (xg) | 0-4752xg luwes | ACC/DEC | 1-10 tarif |
| Range kontrol suhu | -20 ℃ ～ + 40 ℃ | Akurasi kontrol suhu | ± 1 ℃ |
| Noise (dBA) | <58dB(A) | Bobot net (tanpa rotor) | 200KGS |
| Power supply | AC 220V, 50HZ, 10A, 1800W | Ukuran (mm) | 790x670x900mm (LxWxH) |

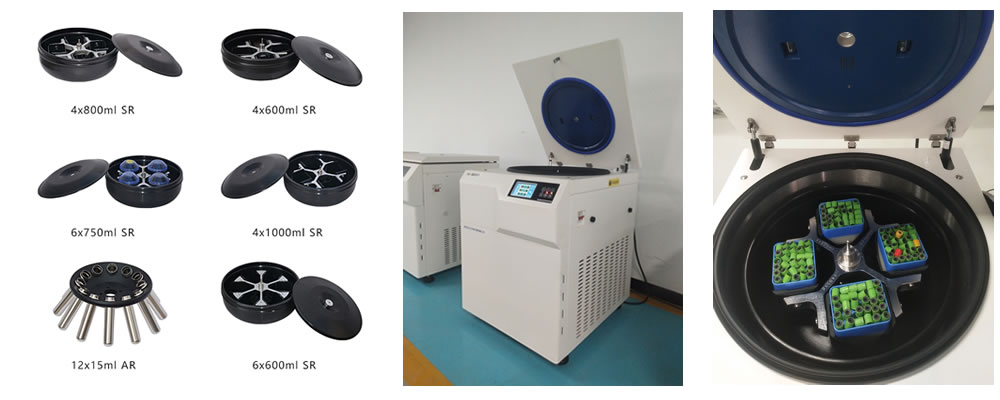

| No. | item | Maks. kapasitas | Maks. Kacepetan | Maks.RCF | cathetan |
NO.1
| rotor sudut | 12x 15/10/5ml | 6000r / min | 4588xg | tabung PP/PC |
| adaptor | 12x2 ml | tabung PP/PC | |||
NO.2 | Rotor ayunan | Rotor rangka baja | 5000r / min | 4752xg | tabung PP/PC |
| Rangka ayunan | 4x100 ml | tabung PP/PC | |||
| Rangka ayunan | 4x50 ml | tabung PP/PC | |||
| adaptor | 4x10/15 ml | tabung PP/PC | |||
N0.3 | Rotor ayunan | Rotor rangka baja | 4000r / min | 3041xg | tabung PP/PC |
| Rangka ayunan | 4 × 2 × 100 ml | tabung PP/PC | |||
| Rangka ayunan | 4 × 2 × 50 ml | tabung PP/PC | |||
| Rangka ayunan | 4×8×15/10/5ml | tabung PP/PC | |||
| adaptor | 4×2×10/15ml | tabung PP/PC | |||
| Rak | 4×12×5/2ml | tabung PP/PC | |||
NO.4 | Swing ember | 4 × 18× 5/2ml | 4000r / min | 2773xg | Vakum tabung koleksi getih |
NO.5 | Swing ember | 4 × 600ml | 4000r / min | 3354xg | Rectangular hanging cup |
| Adaptor decaping | 4×25×5/2ml | tabung PP/PC | |||
| adaptor | 4×12×15/10ml | tabung PP/PC | |||
| adaptor | 4 × 5 × 50 ml | tabung PP/PC | |||
| adaptor | 4 × 4 × 100 ml | tabung PP/PC | |||
NO.6 | Swing ember | 6 × 600ml | 4000r / min | 3400xg | Rectangular hanging cup with wind cover |
| Adaptor decaping | 6×25×5/2ml | tabung PP/PC | |||
| adaptor | 6×12×15/10ml | tabung PP/PC | |||
| adaptor | 6 × 5 × 50 ml | tabung PP/PC | |||
| adaptor | 6 × 4 × 100 ml | tabung PP/PC | |||
| NO.7 | Swing ember | 4 × 500ml | 4000r / min | 3354xg | Babak nggantung tuwung |
| adaptor | 4×17×5/2ml | tabung PP/PC | |||
| adaptor | 4×8×15/10ml | tabung PP/PC | |||
| adaptor | 4 × 3 × 50 ml | tabung PP/PC | |||
| adaptor | 4 × 100ml | tabung PP/PC | |||
| NO.8 | Swing ember | 6 × 500ml | 4000r / min | 3400xg | Babak nggantung cup with wind cover |
| adaptor | 6×17×5/2ml | tabung PP/PC | |||
| adaptor | 6×8×15/10ml | tabung PP/PC | |||
| adaptor | 6 × 3 × 50 ml | tabung PP/PC | |||
| adaptor | 6 × 100ml | tabung PP/PC | |||
| NO.9 | Swing ember | 4 × 800ml | 4000r / min | 3443xg | Rectangular hanging cup with wind cover |
| Adaptor decaping | 4×30×5/2ml | tabung PP/PC | |||
| adaptor | 4×12×15/10ml | tabung PP/PC | |||
| adaptor | 4 × 6 × 50 ml | tabung PP/PC | |||
| adaptor | 4 × 4×100ml | tabung PP/PC | |||
| NO.10 | Swing ember | 4 × 750ml | 4000r / min | 3443xg | Round hanging cup |
| adaptor | 4×26×5/2ml | tabung PP/PC | |||
| adaptor | 4×13×15/10ml | tabung PP/PC | |||
| adaptor | 4 × 5 × 50 ml | tabung PP/PC | |||
| adaptor | 4 × 3×100ml | tabung PP/PC | |||
| NO.11 | Swing ember | 4 × 1000ml | 4000r / min | 3578xg | Rhomboid hanging cup with wind cover |
| Adaptor decaping | 4×42×5/2ml | tabung PP/PC | |||
| adaptor | 4×18×15/10ml | tabung PP/PC | |||
| adaptor | 4 × 7 × 50 ml | tabung PP/PC | |||
| adaptor | 4 × 4×100ml | tabung PP/PC | |||
| NO.12 | Microplate rotor | 4×2×96 bolongan | 4200r / min | 3284xg | 4×2×96 Deep hole plate 4×4×96 Shallow hole plate |
| adaptor | 4 × 32×1.5ml | ||||
 | |||||
1. Produsen centrifuge profesional, rega sing kompetitif.
2.ISO9001, ISO13485, CE, Sertifikasi SFDA, kabeh mesin ngalami pengujian kualitas sing ketat lan kemasan sing apik sadurunge transportasi.
3. Dhukungan teknis jangka panjang lan layanan pelanggan profesional ing saben tahapan dodolan produk, pangiriman lan operasi.Tim layanan sing mumpuni lan berpengalaman sing nyedhiyakake sampeyan kanthi tingkat dhukungan sing unik kanggo tuku kanggo kabeh umur.
4. Kita uga bisa menehi solusi khusus kanggo syarat khusus klien.
5. Powered karo tim efisien engineers digawe dening taun pengalaman ing lapangan pamilike, perusahaan njamin saben produk sing ninggalake unit Manufaktur nganti tandha ing kabeh babagan.
